Dust separators for shop vacs and dust collectors: a buying guide
A cyclone dust separator catches most chips and dust before they reach your shop vac or dust collector filter. Here is how they work, which type fits your setup and how to connect one.
By SQUAREFORGE Shop Desk · Updated
Key takeaways
- A cyclone separator spins incoming air so heavy chips and dust drop into a bin before the air reaches the vacuum.
- Your filter clogs less often, so suction stays stronger for longer.
- Match the separator inlet and outlet to your hose size, and keep hose runs short with few sharp bends.
How a cyclone dust separator works

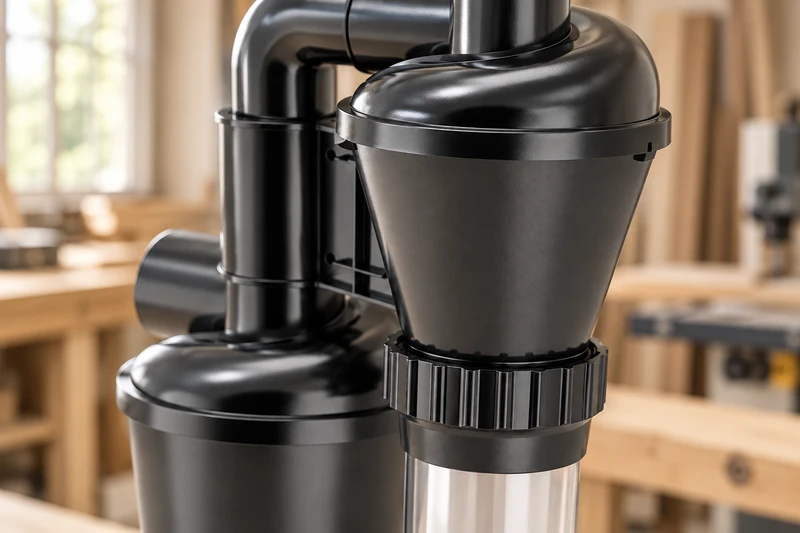

Dirty air enters the cone from the side and spins around the wall. The heavier chips and dust are thrown outward, slow down and fall into the bucket or drum below. Cleaner air leaves through the top and continues to the shop vac or dust collector. Very fine dust can still pass through, so keep a good filter on the vacuum.
Which separator fits your setup
| Type | Mounts on | Good for |
|---|---|---|

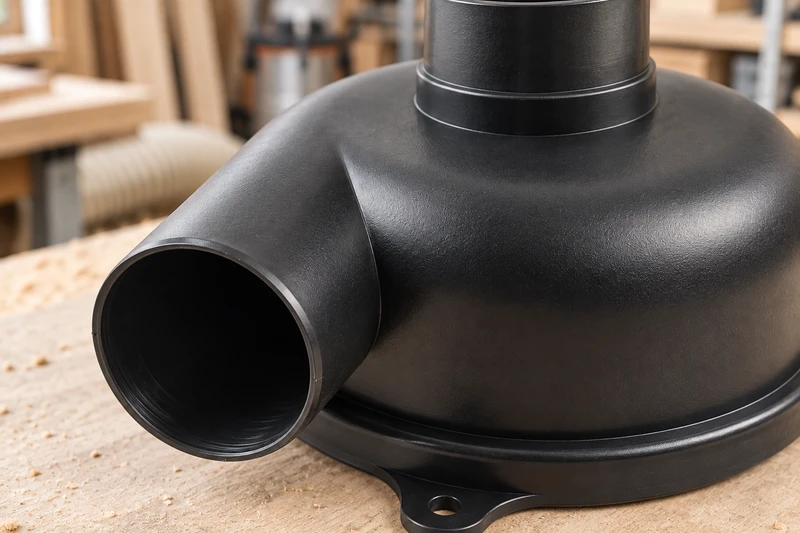

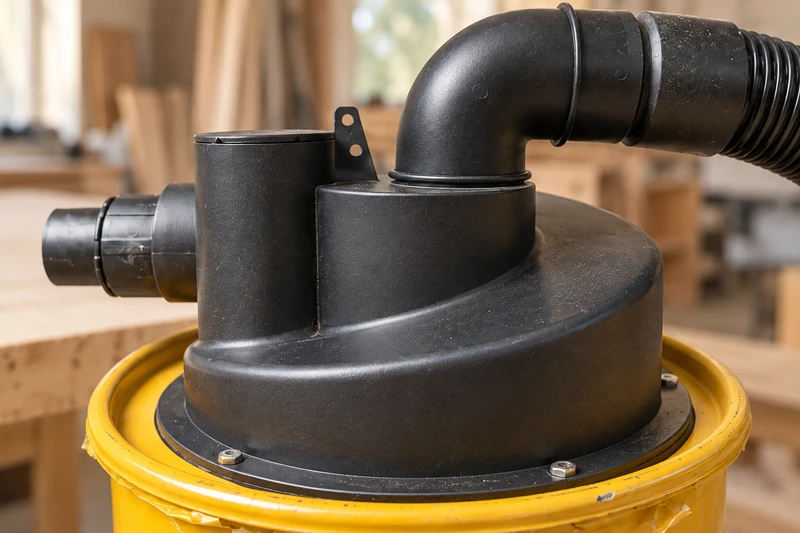

| Bucket-lid cyclone | A 5-gallon bucket | Shop vacs, sanding and small-tool dust |
| Flanged or drum-top cyclone | A drum or sealed bin | Larger capacity for planers and table saws |

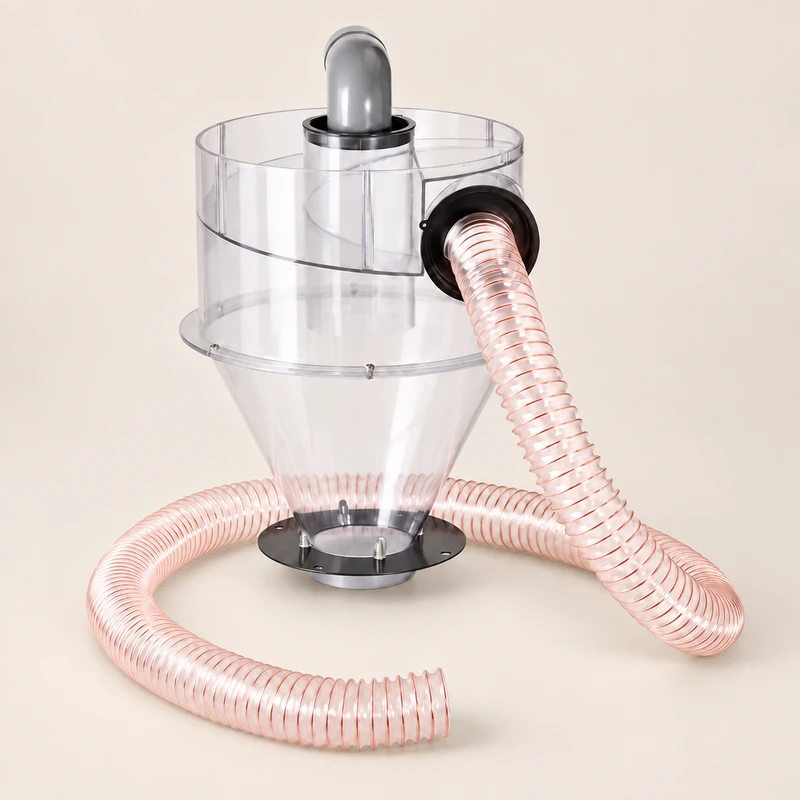

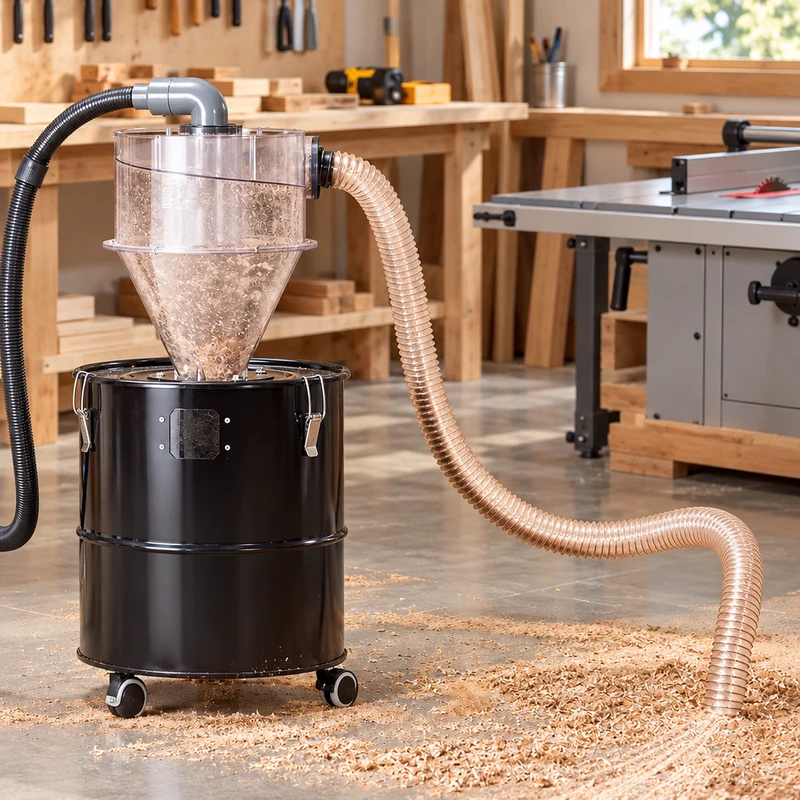

| Clear cyclone | Bucket or drum | Seeing when the bin is full and spotting clogs |

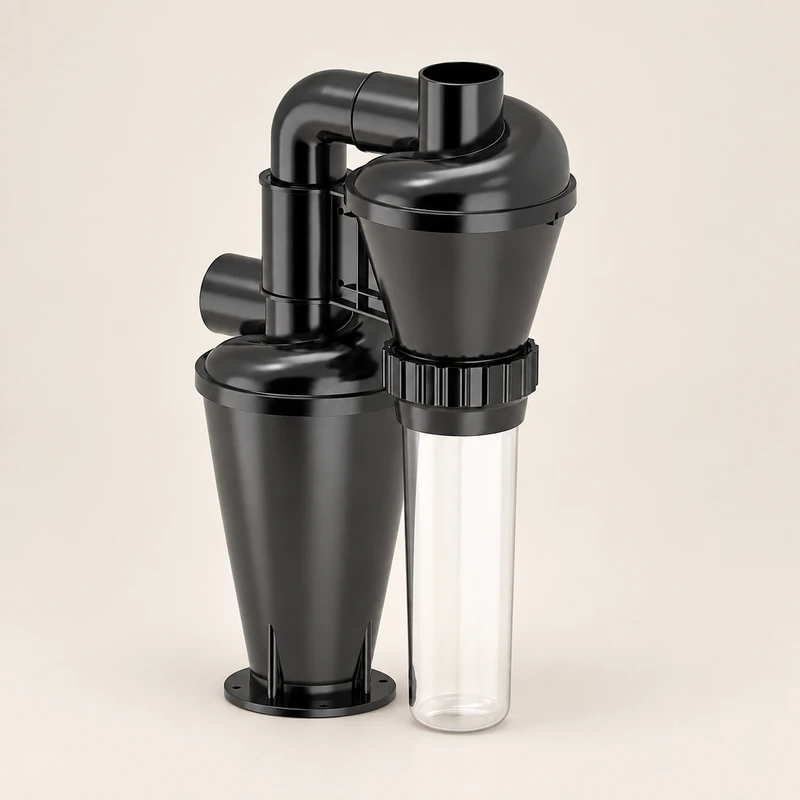

| Dual-stage cyclone | Bucket or bin | Extra separation before the filter |

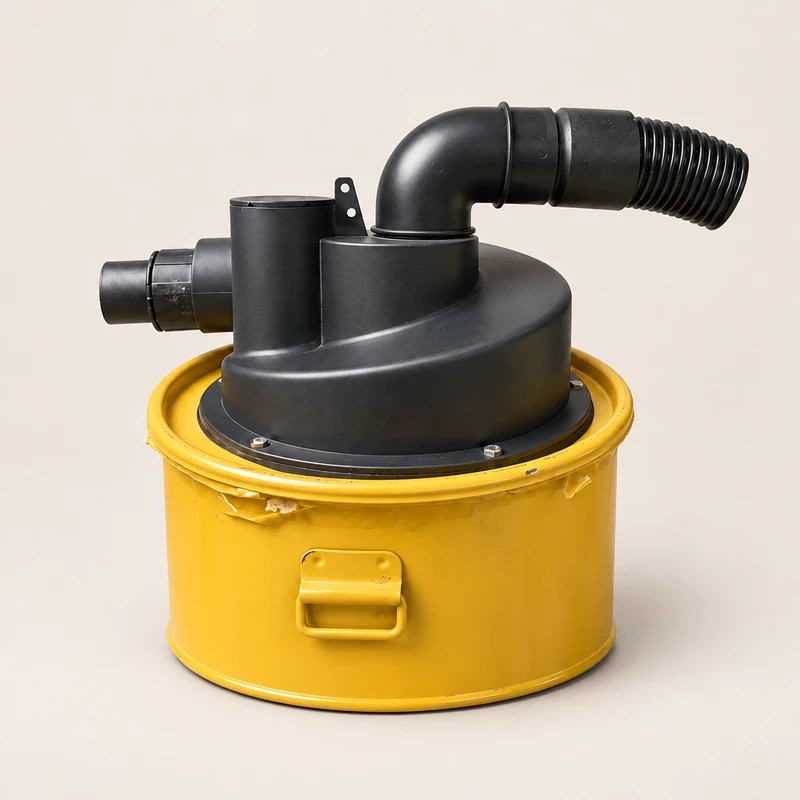

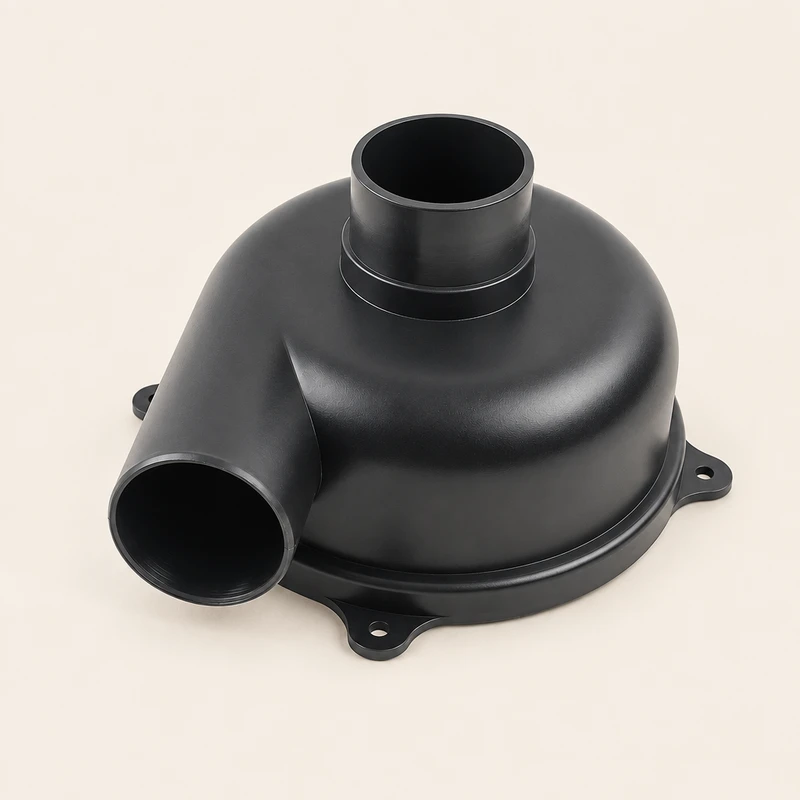

Dust separators in the store
Connecting it to your vacuum and tools

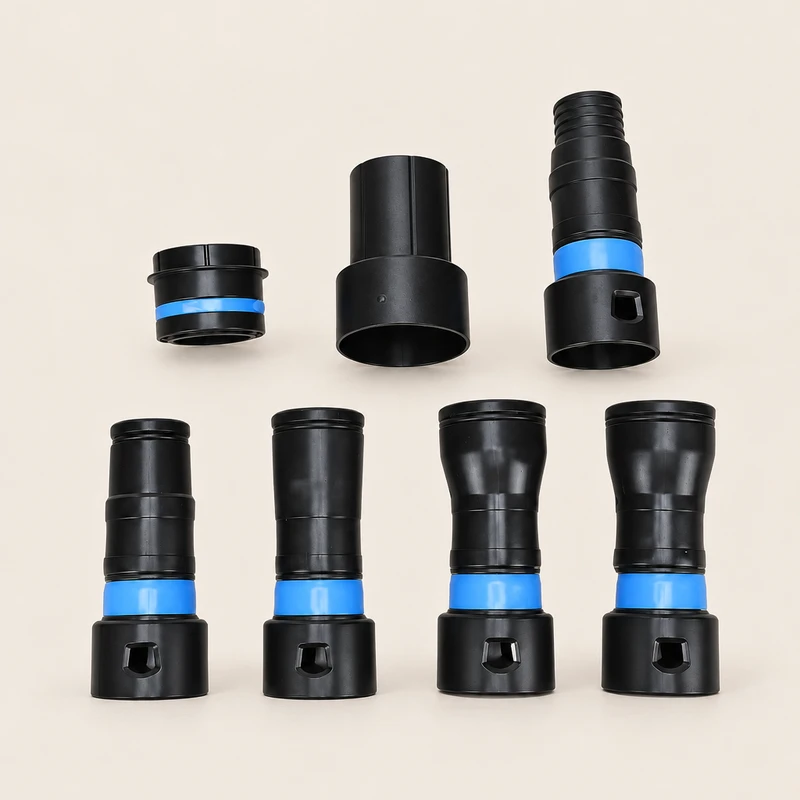

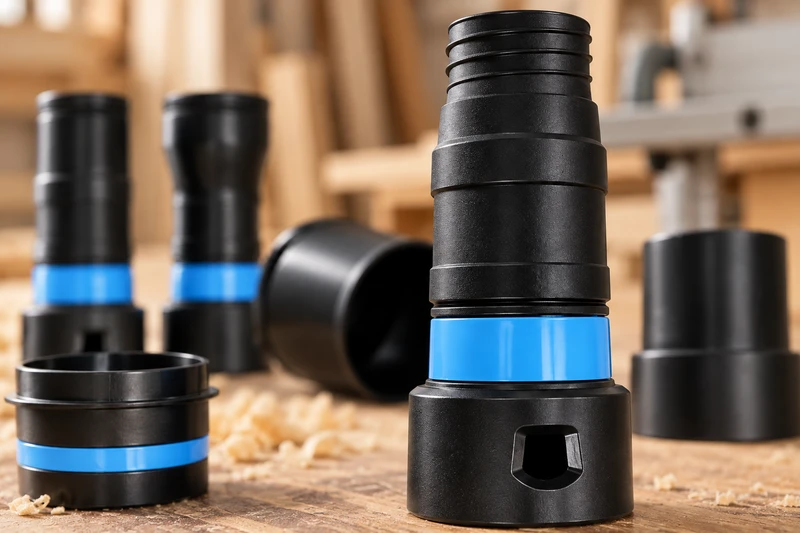

- Check hose sizesMeasure the separator ports, your vacuum inlet and your tool dust ports. Use step adapters where the sizes don't match.
- Seal every jointAir leaks at the lid or fittings cut suction and let dust pass through. Use the gasket and tighten clamps.
- Keep runs shortLong hoses and tight elbows reduce airflow. Place the separator near the tool you use most.

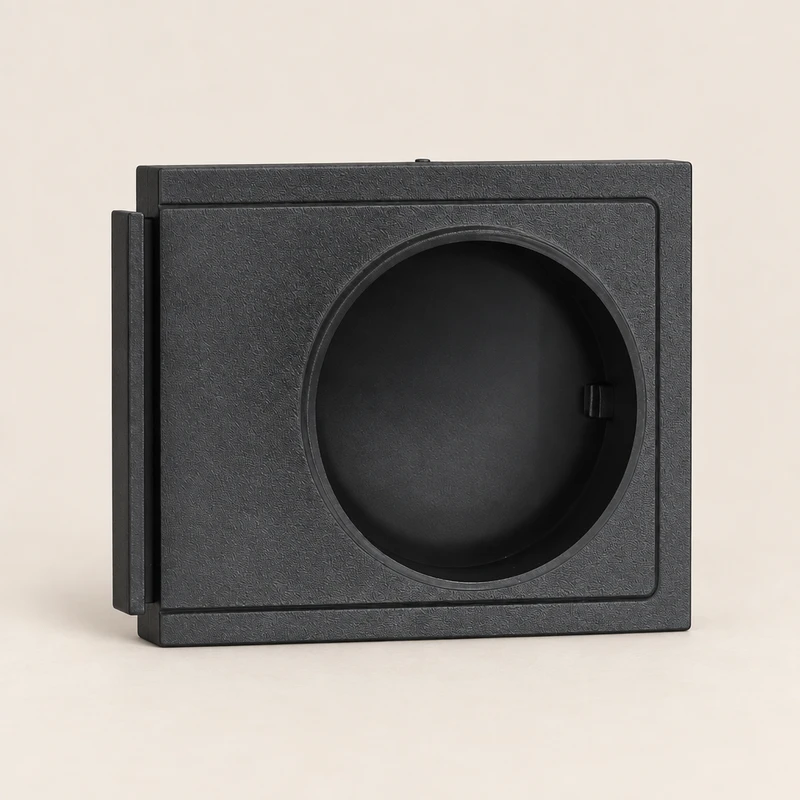

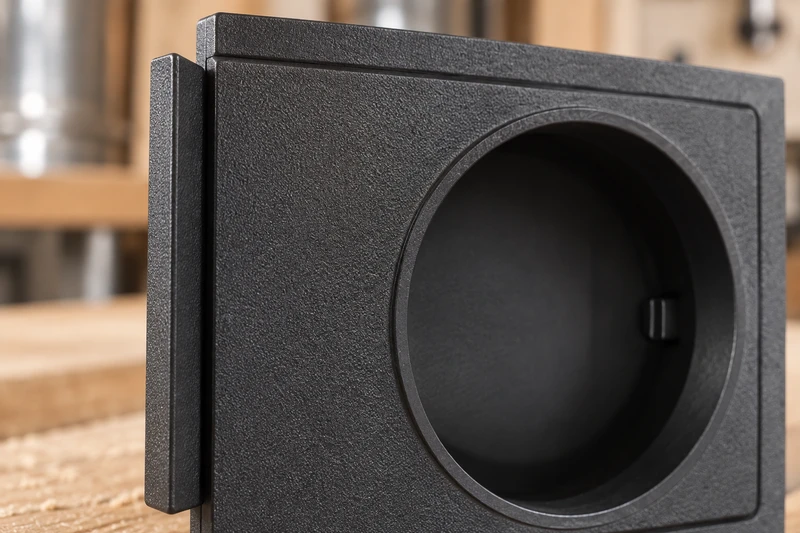

- Add blast gatesOn a system with several tools, close the gates you are not using so all the suction goes to one tool.

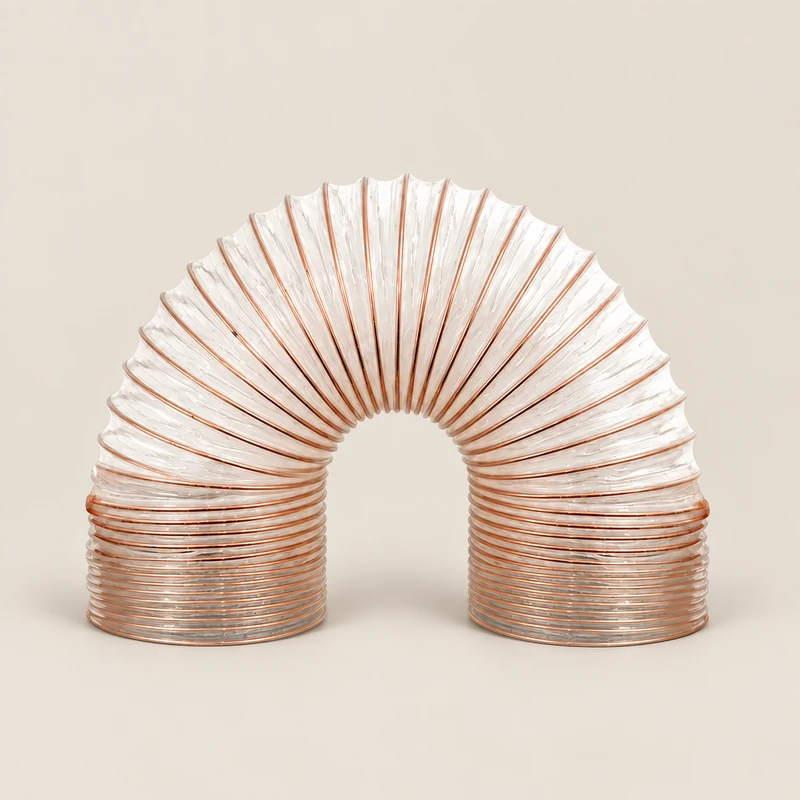

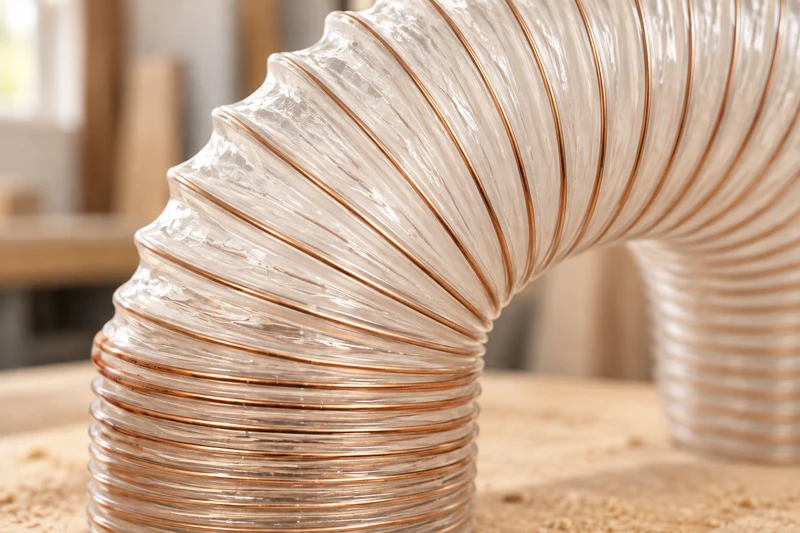

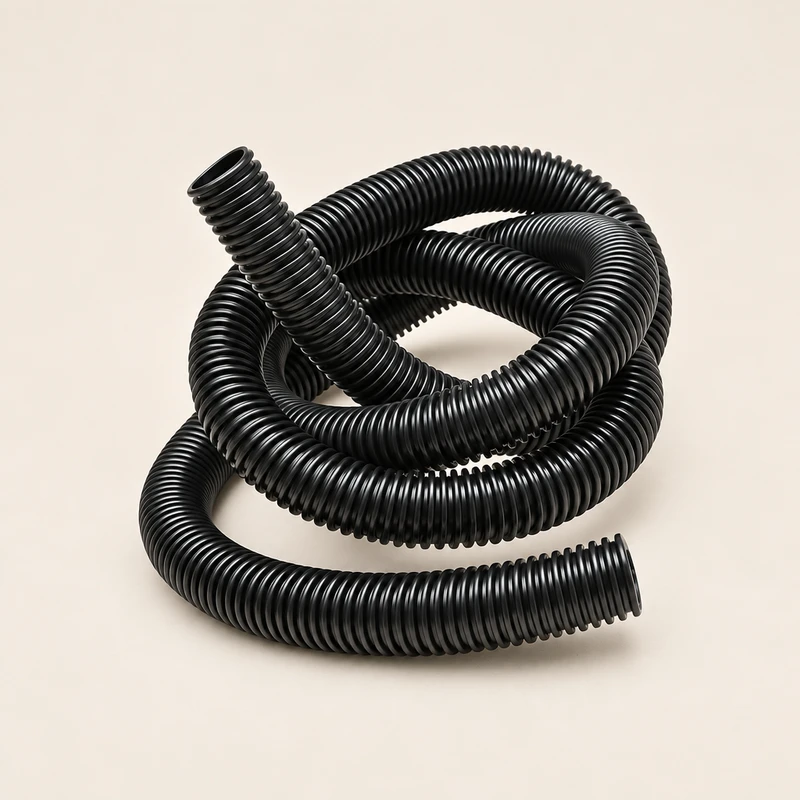

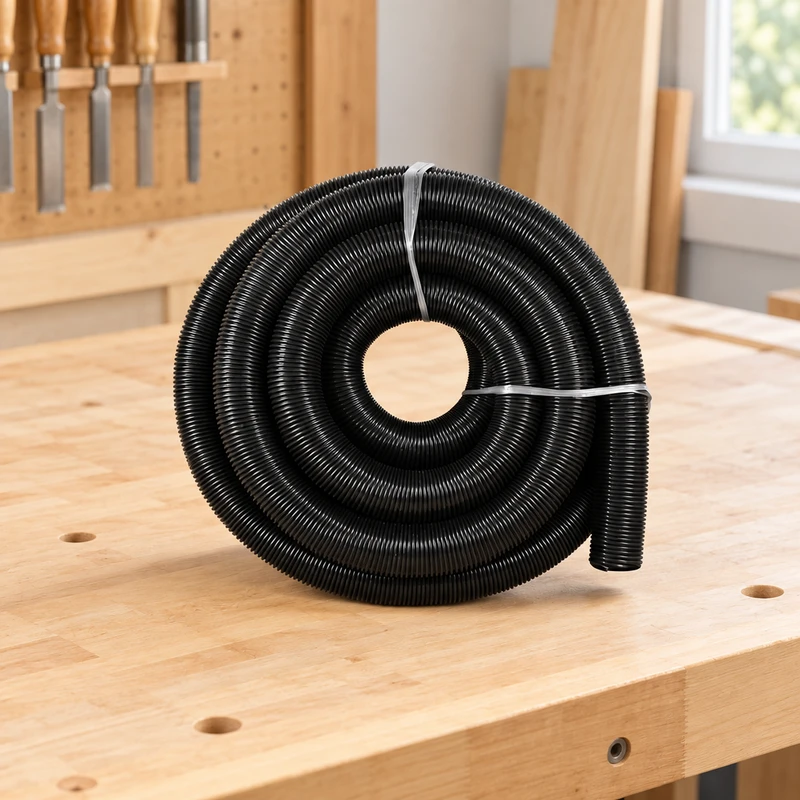

Hoses, gates and adapters
Dust collection checklist
| Frequency | Tasks |
|---|---|
| Weekly | Empty cyclone drum, check blast gates are set correctly |
| Monthly | Inspect ducting for leaks and loose clamps |
| Seasonally | Check filter condition and static grounding connections |
/ Frequently asked
Do I still need a filter with a dust separator?+
Yes. The separator catches most chips and dust, but fine particles can pass through. The filter protects the motor and the air in your shop.
Will a separator reduce suction?+
It adds a little resistance, but because the filter stays cleaner, suction usually stays stronger over a long session than without one.
